160KW Electric Leak-free Chemical Transfer Pump, Chlorinator Acid Pump Corrosion Resistant
Specification Data
Discharge Size: 32mm~200mm
Inlet Size: 50mm~250mm
Capacity: 4～2600m³/h
Head: 2～300m
Maximal Efficiency: 70%
Something About Chemicals
Chemicals are considered dangerous if they are toxic, highly corrosive or volatile. Chemicals can be dangerous for several reasons; they can affect a person’s health, cause litigation issues in case of serious harm and they can pollute the environment and our food chain, such as with pesticides. Many chemicals and solvents are used in the production of all kinds of consumer goods and industrial processes. These chemicals can be used as part of the production process such as in chemical processing, the pharmaceutical industry or the treatment of effluent.
Summaries
1. ZA-series chemical process pump is single-stage horizontal radial split volute pump.The pump body is supported by foot; the impeller is single-suction radial impeller.
2. Liquid is sucked axially and discharged radially. According to working condition, front ring, rear ring and balance pipeare used for hydraulic balance.

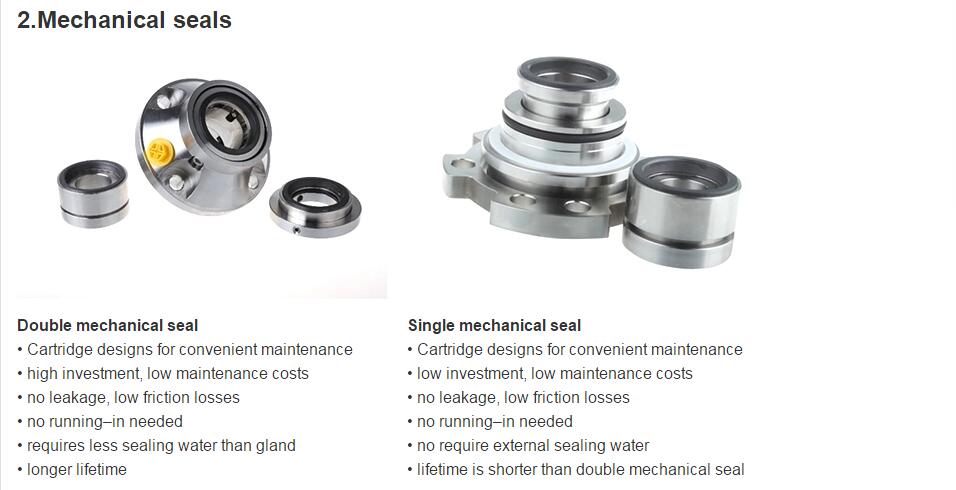

3. Packing box is equipped with cooler adapter or heater adapter; packing seal, single mechanical seal and double mechanical sealare adopted for shaft seal. Besides, the pump is equipped with cooling, washing and sealing fluid system.
Characteristic
Model Defination
Our Service
*All of the enquiry will be replied within 8 working hours
*Professional pump producer, with design team.
*All of the goods are packed with standard export wooden case(non-fumigation)
*Fast delivery time: common stock model, customed type:7 working days
*Support OEM or ODM
*Fast after-service
Certification
Product Tags:
|
|
160KW Electric Leak Free Chlorinator Acid Pump Corrosion Resistant Images
|
