Horizontal Centrifugal Heavy Duty Slurry Pump , Sewage Sludge Pump 3000 m³/h Max Flow
Technical Parameter
| Model | Clear Water Performance |
| Flow Q | Head | Rotating speed n | Shaft power (Pa) | Effectiveness η |
| (m³/h) | m | r/min | kw | % |
| 300ZJ(G)-I-A | 704-2333 | 30.6-80 | 490-980 | 135-505 | 66-81 |
| 250ZJ(G)-I-A | 405-1480 | 29.1-128.7 | 730-980 | 58.3-652 | 54-76.9 |
| 200ZJ(G)-I-A | 256-976 | 28-133.7 | 730-980 | 60.3-448.1 | 50-79.6 |
| 150ZJ(G)-I-A | 164-600 | 19.4-91.2 | 730-980 | 15.8-161.5 | 46.1-74.6 |
| 100ZJ(G)-I-A | 86-360 | 16-100.2 | 980-1480 | 6.7-105.5 | 58.7-70.4 |
| 80ZJ(G)-I-A | 60-242 | 15.7-109.8 | 980-1480 | 5.5-115.9 | 38.8-66.7 |
| 65ZJ(G)-I-A | 28-69 | 11.2-34.8 | 960-1460 | 1.7-10.8 | 54.2-63.5 |
| 50ZJ(G)-I-A | 31-111 | 34.3-110.7 | 970-1480 | 9.7-66.9 | 12.2-45.1 |
| 40ZJ(G)-I-A | 9-23 | 9.1-44.6 | 1400-2900 | 0.3-4.7 | 33.2-52.4 |
Product Description
Slurry pumps have been successful for more than a decade in the world's most challenging applications. In addition to all the benefits gained from the suction side seal system, the extremely thick elastomeric lining and heavy-duty impellers make this pump a longer life.
The types of transmission include direct connection, belt, hydraulic fluid power and frequency conversion. According todifferent connections like seriesconnection andparallel connection, transmission type can be changed.
Feature
| High efficient and anti-abrasive slurry pump |
| Full convertion between solid and liquid energy |
| Reduce corrosion of overflow part |
| Better cavitation |
| Bigger particles permitted and stable running |
| Kinds of wear resistant corrosive resistant materials available |
Application Scope
Transfer abrasive and corrosive slurry: maximum density of solid-liquid mixture: for mortar, 45%; for pulp, 60%
In mining, metallurgy, power, coal, chemicals, building materials and other industries
Installation Dimension
Single base
Sharing Base
Performance Range
Capacity: 4 ~ 3000 m³/h
Head: 10 ~ 130 m
Diameter: 200mm~470mm
Maximal Efficiency: 70%
NPSH: 0m~3m
Pump Weight:up to 3000kg
RPM: 1450 r/min
Impeller Type: closed/ half open

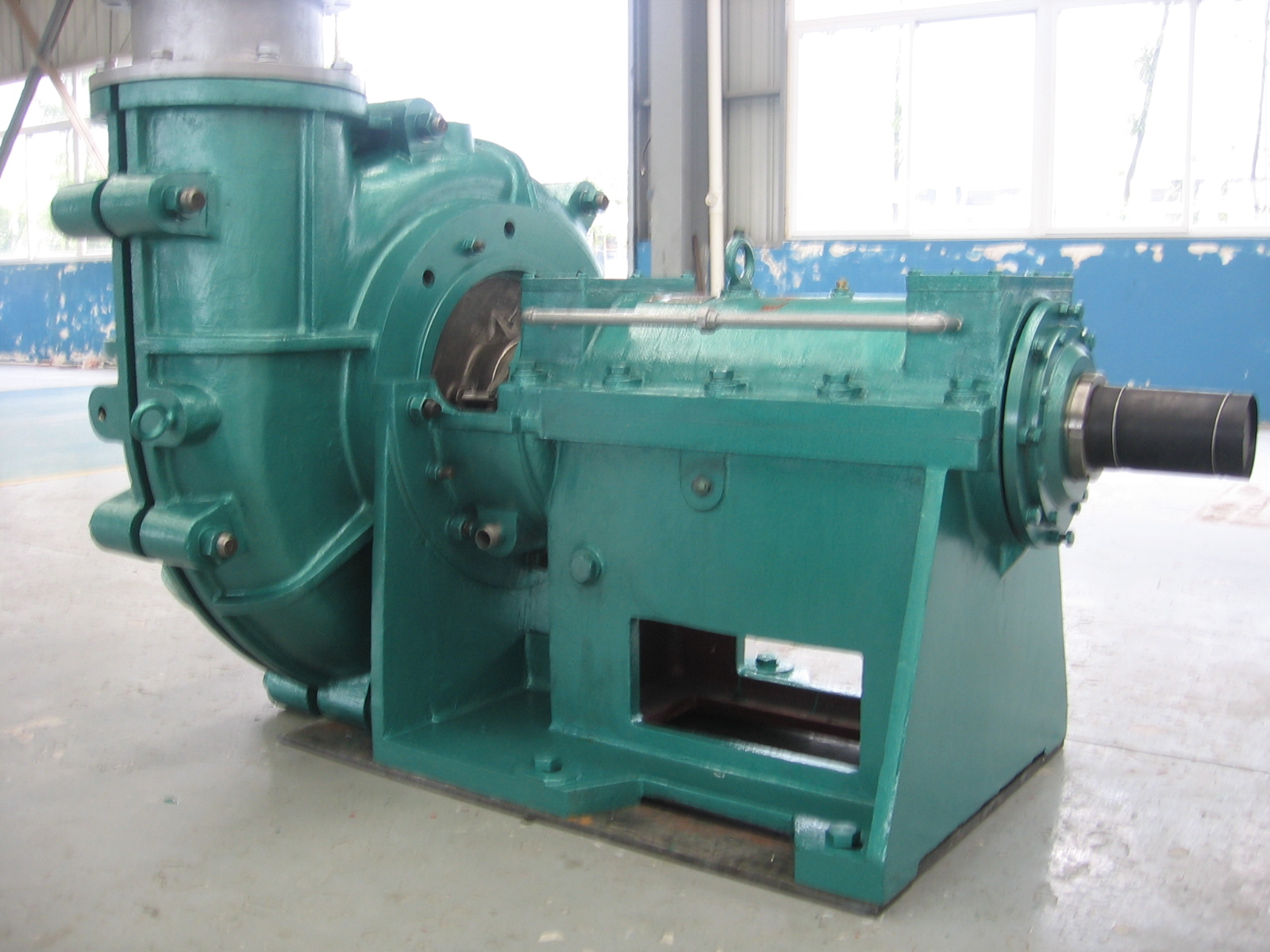

Product Picture
