Centrifugal Submersible Rubber Liner Abrasive Vertical Slurry Pump For Mine Tailing

Name: Centrifugal Submersible Rubber Liner Abrasive Vertical Slurry Pump For Mine Tailing
Brand: Chengdu Yongyi
Price: 500 USD

China Centrifugal Submersible Rubber Liner Abrasive Vertical Slurry Pump For Mine Tailing wholesale

Brand Name : Chengdu Yongyi

Model Number : ZJL

Certification : ISO9001

Place of Origin : Sichuan, China

MOQ : 1 set

Price : USD 500-5000/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 300 sets per month

Delivery Time : 25 working days after receiveing advance payment

Packaging Details : Free Fumigation Export Wooden Box

Theory : Centrifugal Pump

Flow : 6 ~ 364m ³ / h

Head : 6～58m

Material : Corrosive Resistance Material

Color : Customized

Flange : Customized

Voltage : 380V

Application : Sewage, chemical

Warranty : one year

Contact Now

Vertical Centrifugal Submersible Rubber Liner Abrasive Slurry Pump for Mine Tailing

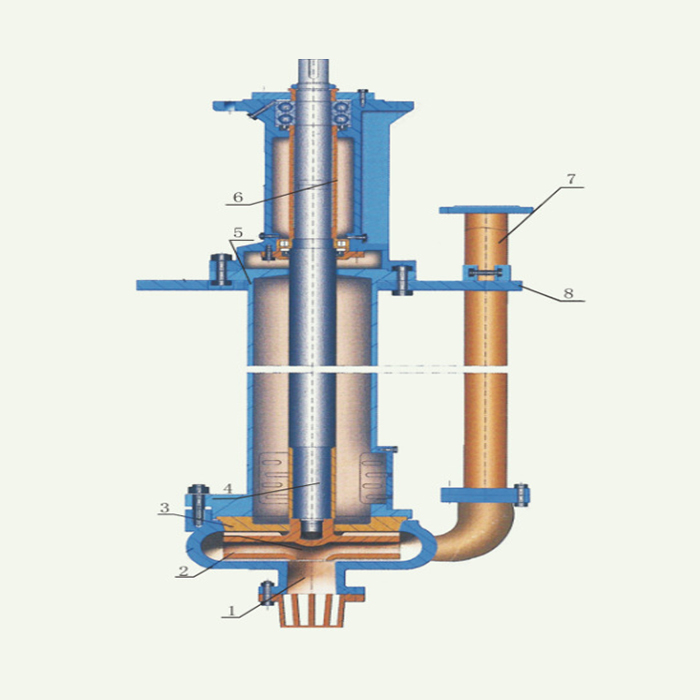

Structure

Features

A. ZJL-series submerged pumps are vertical centrifugal slurry pump, generally used to transport abrasive, coarse particle, high concentration slurry.

B. Don't need any shaft seal and shaft seal water, in the inhaled volume insufficient conditions they can also work normally.

C. Pump body is made of wear-resisting metal. Impeller is made of wear-resistant metal or rubber, polyurethane.Submerged pumps parts into the liquid with rubber lining,they are all applicable to transport corrosive slurry.

D. The guide bearing construction is added to the pump on the basis of the standard pump, so the pump is with both more steady operation and wider application range, but flushing water should be attached to the guide bearing.

Data Range

Diameter: 200mm~470mm
Head: 4 ~ 60 m
Capacity: 6 ~ 364m³/h
Discharge Size: 40mm~200mm
Inlet Size: 50mm~250mm
NPSH: 1.4m~3.5m

Technical Parameter

Model	Clear Water Performance						Supporting motor
	Rotating speed n	Flow Q	Head H		Shaft power Pa	effectiveness η
	r/min	(m³/h)	m		kw	%
150ZJL-A35	980	198	17.9		15.3	63.1	Y250M-6 V1 380V 37kw
		332	13.2		17.5	68.1
		364	12.1		18.0	66.8
	730	147	10.0		6.3	63.1	Y200L-8 V1 380V 15kw
		247	7.3		7.2	68.1
		271	6.7		7.4	66.8
	590	119	6.5		3.3	63.1	Y160L-10 V1 380V 11kw
		200	4.8		3.8	68.1
		219	4.4		3.9	66.8
100ZJL-A36	1480	113	51.1		32.1	54.1	Y250M-4 V1 380V 55kw
		185	42.2		39.4	58.9
		239	34.1		45 .1	54.2
	970	76	22.9		9.6	54.1	Y200L1-6 V1 380V 18.5kw
		124	18.9		11.8	58.9
		160	15.3		13.5	54.2
80ZJL-A33	1480	100	46.8		26.8	52.6	Y225M-4 V1 380V 45kw
		141	41.6		31.0	56.5
		157	36.5		33.2	52.3
	970	42	16.8		5.5	52.6	Y180L-6 V1 380V 15kw
		94	12.4		7.1	56.5
		122	8.4		8.7	52.3
65ZJL-A38	1470	75	52.3		23.1	42.7	Y225S-4 V1 380V 37kw
		97	45.8		26.4	45.8
		120	43.4		28.8	45.6
	970	50	23.4		6.9	42.7	Y180L-6 V1 380V 15kw
		65	20.5		7.9	45.8
		80	19.4		8.6	45.6
65ZJL-A30	1470	38	34.7		8.2	43.7	Y180M-4 V1 380V 18.5kw
		58	31.9		9.7	51.9
		98	26.0		13.4	51.7
	960	25	14.8		2.3	43.7	Y132M2-6 V1 380V 5.5kw
		38	13.6		2.7	51.9
		64	11.1		3.7	51.7
50ZJL-A40	1470	31	58.3		16.5	29.9	Y200L-4 V1 380V 30kw
		47	51		19.1	34.1
		65	37.9		22.1	30.3
	970	21	25.4		4.9	29.9	Y160L-6 V1 380V 11kw
		31	22.2		5.5	34.1
		43	16.5		6.4	30.3
50ZJL-A36	1470	36	42.7		15.7	31.2	Y200L-4 V1 380V 30kw
		63	37.8		18.7	39.4
		85	29.3		20.7	33.5
	970	24	19.1		4.7	31.2	Y160L-6 V1 380V 11kw
		42	16.9		5.6	39.4
		57	13.1		6.2	33.5
50ZJL-A20	1440	17.1	10.7		1.4	34.9	Y112M-4 V1 380V 4kw
		24.7	9.2		1.6	38.6
		38.0	6.0		2.0	31.2
	910	10.8		4.3	0.4	34.9	Y90L-6 V1 380V 1.1kw
		15.6		3.7	0.4	38.6
		24.0		2.4	0.5	31.2
40ZJL-A35	1470	23.7		42.9	12.8	27.3	Y180L-4 V1 380V 22kw
		42.3		34.3	13.7	33.8
		47.6		30.5	14.1	28.1
	970	15.8		19.2	3.8	27.3	Y160M-6 V1 380V 7.5kw
		28.3		15.3	4.1	33.8
		31.8		13.6	4.2	28.1
40ZJL-A25	1440	10.1		21.5	2.3	26.1	Y132S-4 V1 380V 5.5kw
		18.4		19.0	2.6	36.6
		22.9		16.8	2.8	37.6
	910	6.6		9.2	0.6	26.1	Y90L-6 V1 380V 1.1kw
		12		8.1	0.7	36.6
		14.9		7.2	0.7	37.6
40ZJL-A21	1440	9.5		17.0	1.6	27.9	Y112M-4 V1 380V 4.0kw
		20.3		15.3	2.0	42.4
		25.9		14.1	2.2	44.6
	910	6.0		6.8	0.4	27.9	Y90L-6 V1 380V 1.1kw
		12.8		6.1	0.5	42.4
		16.4		5.6	0.6	44.6

Material

Description	Standard Material	Material Options
Shaft	4140 Mild Steel	Available on Request
Bearing Housing	Cast Iron
Column	Mild Steel
Upper Strainer	Rubber	Cast Iron
Lower Strainer	Cast Iron
Back Liner	27% Chrome White Iron
Pump Casing	27% Chrome White Iron	Rubber Lined White Iron
Impeller	27% Chrome White Iron	Rubber
Discharge Pipe	Mild Steel	Rubber Lined Mild Steel/ Composite
Adaptor Plate	Mild Steel
